New Vertical Pressure Leaf Filter 1000kg for Oil Industry

Name: New Vertical Pressure Leaf Filter 1000kg for Oil Industry
Brand: Juneng
Price: 7 USD

China New Vertical Pressure Leaf Filter 1000kg for Oil Industry wholesale

Place of Origin : Jiangsu, China

Brand Name : Juneng

MOQ : 1 set

Price : $7,760-8,000 / set

Weight : 1000 kg

Filtration area : 2-70 ㎡

Filter cake volume : 30-1400 L

Work pressure : 0.1-0.4 Mpa

Max pressure : 0.5 Mpa

Work temperature : ≤150 ℃

Machine volume : 120-7200 L

Treatment capacity oil : 0.4-19 m³/h

Treatment capacity resin : 1-68 m³/h

Treatment capacity beverage : 0.1-78 m³/h

Package size : 123*456*789 cm

Package weight : 1.2 T

Material : Stainless steel

Operation type : Fully closed

Residue discharge : Pneumatic valve

Contact Now

Product Description

Product Application

NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.
The filter is composed of shell, filtration plate, cover, and automatic dump device.
Among them, the filtration plate is made of many layers of stainless steel filtration materials, and they re installed on the central liquid collection pipe,so it can be dismantled for cleaning very conveniently.

New Vertical Pressure Leaf Filter 1000kg for Oil Industry

Model	Filtration area ㎡	Filter cake volume L	Treatment Capacity			Work Pressure Mpa		Work temperature ℃	Machine volume L
Model	Filtration area ㎡	Filter cake volume L	Oil	Resin	Beverage	Rated pressure	Max pressure	Work temperature ℃	Machine volume L
NYB-2	2	30	0.4-0.6	1-1.5	0.1-0.4	0.1-0.4	0.5	≤150	120
NYB-4	4	60	0.5-1.2	2-3	2-5				250
NYB-7	7	105	1-1.8	3-6	4-7				420
NYB-10	10	150	1.6-3	5-8	6-9				800
NYB-12	12	240	2-4	6-9	8-11				1000
NYB-15	15	300	3-5	7-12	10-13				1300
NYB-20	20	400	4-6	9-15	12-17				1680
NYB-25	25	500	5-7	12-19	16-21				1900
NYB-30	30	600	6-8	14-23	19-25				2300
NYB-36	36	720	7-9	16-27	23-31				2650
NYB-40	40	800	8-11	21-34	30-38				2900
NYB-45	45	900	9-13	24-34	36-44				3200
NYB-52	52	1040	10-15	27-45	42-51				3800
NYB-60	60	1200	11-17	30-52	48-60				4500
NYB-70	70	1400	12-19	36-60	56-68				5800
NYB-80	80	1600	13-21	40-68	64-78				7200

Main Features

1.With no cloth and filter paper, it greatly reduces filtration costs.

2.The fully closed operation is environmentally friendly without material loss

3.Vibration residue falling greatly reduces labor intensity and realizes continuous operation

4.Residue discharging through the pneumatic valve greatly reduces labor intensity of workers.

5.The residues in the liquids are subject to activated carbon (carclazyte) filtering or bleaching filtering. It can completely replace the plate and frame filter and is a revolutionary device in the filter industry.

Detailed Image

Filter Leaf

Butterfly Valve

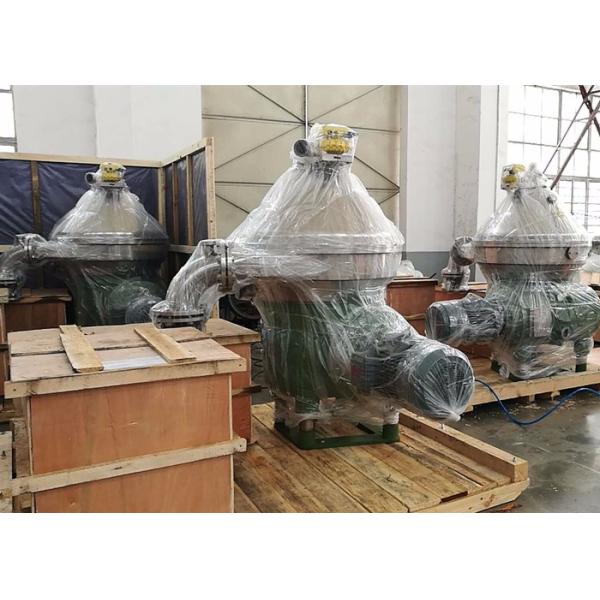

Milk Separator

91.8% Response Rate

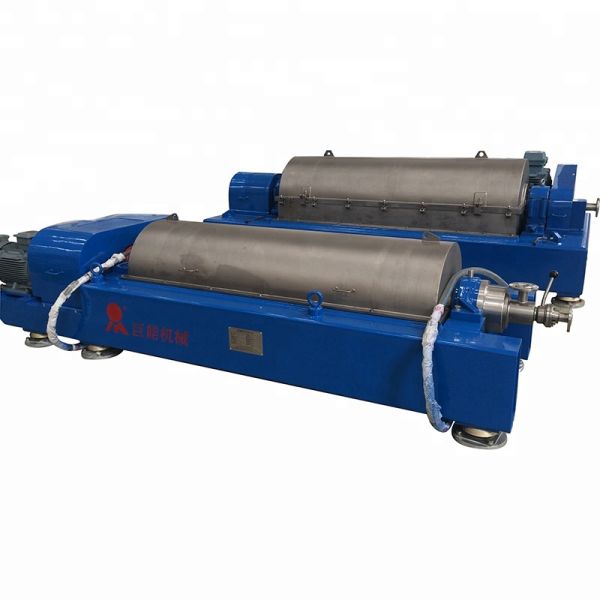

Decanter Centrifuge

91.8% Response Rate

Multi-function Filter

91.8% Response Rate

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
